Small bulldozer

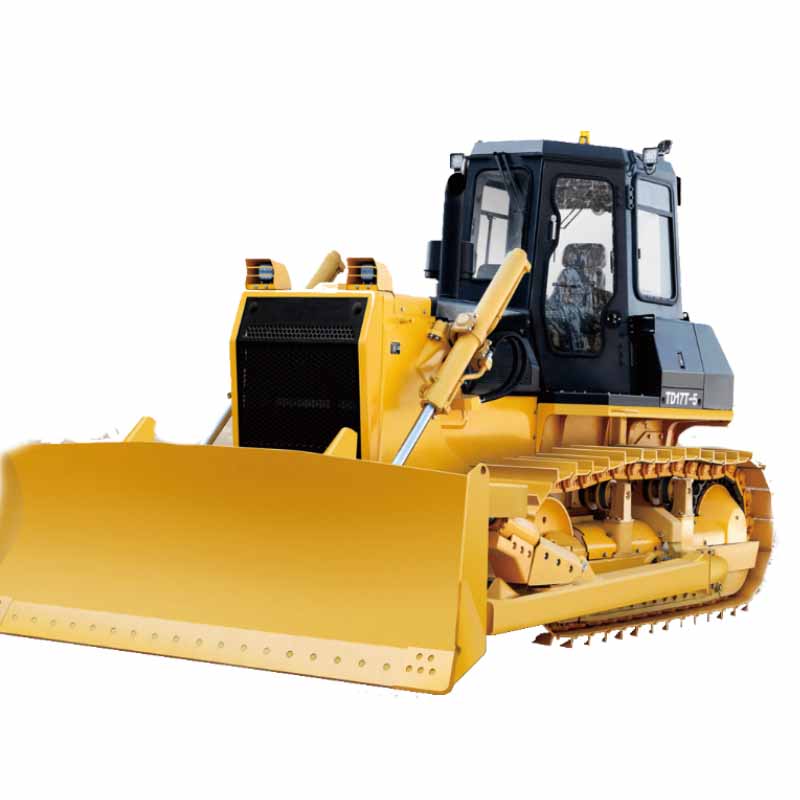

TD17T-5 Hot selling type Popular
| Engine model | 上柴SC11CB184G2B1/潍柴WD10G178E25; |
|---|---|
| Rated power/rated speed | 131 kW/1850 rpm |
| Working capacity | 15m³ |
-
Hydraulic torque converter, three primary components, single-stage single-phase
-
Power shift transmission, planetary gear type, power shift, forced lubrication
-
Central transmission, spiral bevel gear, single-stage reduction, splash lubrication
-
Steering clutch type: wet, multi-plate; spring-loaded, normally engaged, hydraulically disengaged; manually operated with hydraulic control
| Work weight | 17T |
|---|---|
| Grounding voltage | 87.5kpa |
| Rated power/rated speed | 131 kW/1850 rpm |
| Working capacity | 15m³ |
| Blade lift height | 1560mm |
| Soil depth | 560mm |
| Engine model | 上柴SC11CB184G2B1/潍柴WD10G178E25; |
